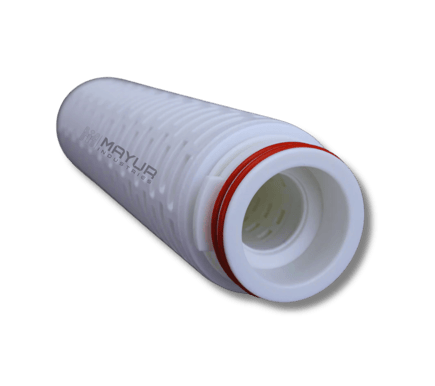

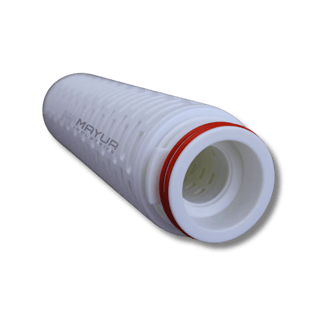

Glass Fiber Pleated Filter Cartridge

Glass Fiber Pleated Filter Cartridge Is a designed for high-efficiency depth filtration in applications where large volumes of particulates need to be captured. The pleated microglass media provides a deep matrix structure that offers high dirt-holding capacity, excellent flow rates, and low pressure drop.

Are you interested in our Glass Fiber Pleated Filter Cartridge and would like to inquire about:

Available sizes and micron ratings

Pricing and bulk order discounts

Lead times and delivery options

Product Description

Ideal as pre-filters for membrane cartridges or for standalone use in high-particulate liquid filtration, these cartridges are used in pharmaceutical, food & beverage, and industrial applications requiring reliable particle retention and long service life.

Features Nd Benefits

• Depth-Loading Microglass Media – superior retention of

  particulates and gels

  High Dirt-Holding Capacity – extended filter life and

  fewer replacements

  Low Pressure Drop – even at high flow rates

  Thermally Bonded Construction – free from adhesives or binders

  Wide Chemical Compatibility – suitable for aggressive fluids

  Pre-Filtration Support – protects final filters and improves

  system economics

  Broad Temperature Range – compatible with hot fluids

• pre-filtration of solutions and solvents

• process water,

• rinse water,

• boiler feed

• Fuel, lube oil, and hydraulic systems

• filtration of viscous particulate-laden liquids

• clarification of juices, beer, wine, and sugar syrups

Applications

Pharmaceuticals

Water & Wastewater Treatment

Air & Gas

Food & Beverage

Electronics & Specialty Chemicals

Material

Glass fiber media, PP core

Core

Micron Ratings

Outer Diameter

Temp

pH Range

Size

5" to 40"

1 – 13

Up to 120°C

Polypropylene (PP) or SS (optional)

0.5, 1, 3, 5, 10, 20 µm (nominal)

2.5" / 2.7" (standard)

Product Specifications
